Electrical parameter

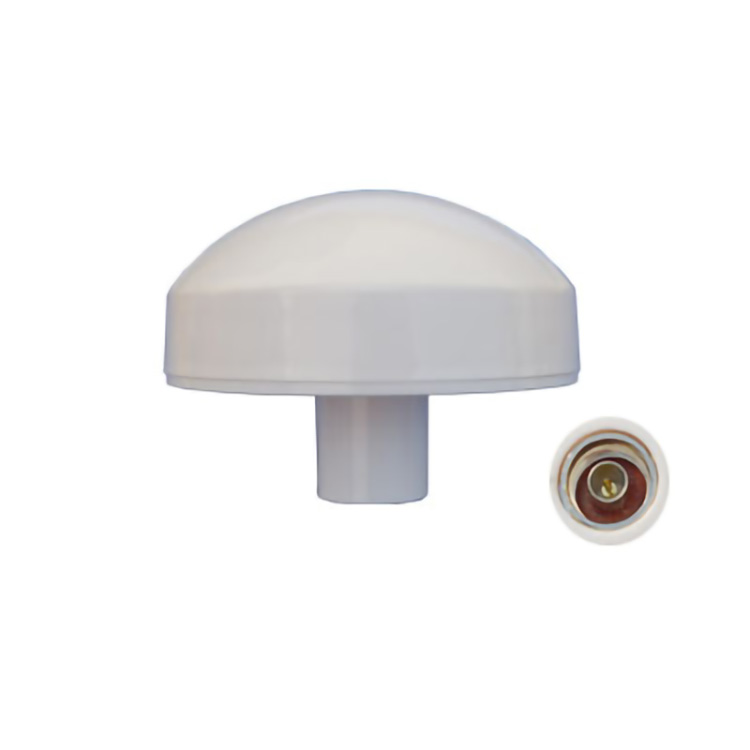

Model AC-GPS-15
Frequency 1575.42MHz ± 1 MHz
Polarization RHCP
Gain 5DBIC (zenith)
Senate <1.5
Input impedance 50Ω
Lama gain 38dbi
Noise coefficient <1.3
Insert loss of filter <3dB
Attenuation
12db@CF 50MHz/16DB@CF-50MHz
DC voltage 3 ~ 5V DC
DC current 18 ~ 35mA
The amplifier resident wave ratio \\u003c2.0
Amplifier Omni-Direction
Connect N Male
Antenna material ABS
Vibration value 10 to 55Hz with 1.5mm amplitude 2hours
Mechanical parameter
Size φ95x74 mm
Weight 150g
Work temperature -40 ℃ ~ 80 ℃
Humidity up to 95%
Waterproof IP67 (Not Include The Line Port)
